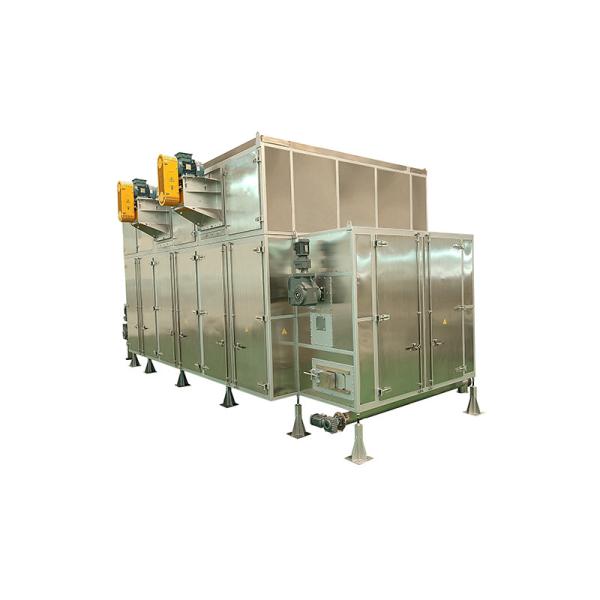

Industrial Drying Machine for Feed, Food & Chemicals | 500-5000 kg/h Custom Solutions | CE/ISO Certified Stainless Steel & Energy-Saving
Application scope:
Mainly used for drying materials after extruding in the feed processing process to meet the moisture requirements of the process and ensure that the product does not produce mold during storage; Suitable for controlling the water content of floating feed, sinking feed, pet feed, and other feeds.
Performance Features:
(1) Imported PET fiber mesh (or stainless steel mesh) is adopted to dry material with high -ventilation efficiency and less powder content;
(2) Drying time and water content of material is adjustable with frequency inverter;
(3) The automatic temperature-controlled system easily controls the water content of feed and avoids waste of steam;
(4) Widely applied to drying of high-grade extruding feed, aquatic feed and other kinds of feed.
Technical parameters:
| Model | SWHG27/8F | SWHG27/10F | SWHG27/12F | SWHG27/16F |
| Power(kw) | 162 | 177 | 192 | 223 |
| Capacity(t/h) | 4-6 | 5-7 | 8-12 | 11-15 |
| Steam volume(kg/h) | 1650 | 1900 | 3300 | 4000 |
Product advantages:
(1) Drying moisture uniformity (≤± 0.5%)
a. Wide air duct design on both sides for more uniform airflow;
b. Double air ducts alternate airflow;
c. Uniform material distribution, frequency conversion logic control;
d. Circulating airflow control, frequency conversion control of circulating fan, adaptable to various specifications of material particles;
(2) Low energy consumption
a. Multiple drying mesh belt options to meet the drying needs of various products.
b. Large effective drying area;
c. Thick insulation layer to reduce heat radiation and improve thermal efficiency;
d. Equipped with a preheating air expansion cooling section;
e. Optimal moisture discharge damper position;
f. Humidity control module, with frequency conversion moisture discharge fan;
g. Large adjustment ratio imported brand burner, achieving accurate zoning temperature control;
h. Drying section zoning settings, independently precise control;
(3) Clean and hygienic design
a. Contact material part made of stainless steel;
b. Widened air duct design to reduce circulating air velocity and dust overflow;
c. Minimal dead corners to prevent material accumulation;
d. Install dust cleaning system as needed.
(4) Easy to operate, durable, safe and reliable
a. Quick-pull dust-proof net for easy cleaning;
b. Choose different control operation modes according to the drying material characteristics (floating material, sinking material);
c. Adopt heavy-duty frame structure and heavy-duty chain bed;
d. Adjustable conveyor system track design for greater stability and reliability;
e. Multi-level interlocking control to ensure safe and stable gas use;
